PRY-B400 Semi Automatic 2 Colors Flexo Printing Slotting Die Cutting Machine

Name: PRYB400 Semi Automatic 2 Colors Flexo Printing Slotting Die Cutting Machine
Brand: PRINTYOUNG
Price: 23000 USD

Best PRY-B400 Semi Automatic 2 Colors Flexo Printing Slotting Die Cutting Machine wholesale

Brand Name : PRINTYOUNG

Model Number : PRY-B400

Certification : CE

Place of Origin : China

MOQ : 1 Set

Price : US 23000 Set

Payment Terms : L/C, T/T

Supply Ability : 30 Set/Sets per Month

Delivery Time : 45 days

Packaging Details : Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions. A full set of maintenance and operation manuals is included.

Wallboard Medial Width : 2700 mm

Max. Feeding Size : 1200 * 2500 mm

Min. Feeding Size : 300 * 400 mm

Max. Printing Size : 1200 * 2500 mm

Plate Thickness : 7.2 mm

Max Speed : 60 pcs/min

Economy Speed : 30 ~ 50 pcs/min

Power : 12 kw

Color Accuracy : ≤ 0.5 mm

Paperboard : 3/5/7 layer

Contact Now

PRY-B400 Printing Slotting Die Cutting Machine

PRY-B400 Semi Automatic 2 Colors Flexo Printing Slotting Die Cutting Machine

Features

1.Chain feeding model,gravure registering is convenient and correct with a clutch between the worktable and unit;
2.Motorized detachment and combination,pneumatic locking and loosening of printing units;
3.Printing and Slotting phase was adjustment the planetary gear structure 360° electric phase,show with digit;
4.Whole machine was used the gear pump automatic lubrication;
5.Ink roller and printing pressure roller was connected by cross slide to ensure a stable running;
6.Whole machine axle,roller with rigid chrome and grinded surface;
7.Whole machine electric parts was used the domestic famous brand;
8.Whole machine bearing was used the Harbine bearing group;
9.Photoelectric counting,pre-setting order quantity,plan produce.

Technical Parameters

PRY-B400 Printing Slotting Die Cutting Machine
Wallboard Medial Width	2700 mm
Max. Feeding Size	1200 * 2500 mm
Min. Feeding Size	300 * 400 mm
Max. Printing Size	1200 * 2500 mm
Plate Thickness	7.2 mm
Max Speed	60 pcs/min
Economy Speed	30 ~ 50 pcs/min
Power	12 kw
Color Accuracy	≤ 0.5 mm
Paperboard	3/5/7 layer

Configuration

Feeding Unit

1.It adopts hand-control chain feeding,stepless speed adjustment control.
2.Optical-control counter presets ordered paper quantity.
3.Workbench is connected with machine and equipped with a clutch to enable convenient flexographic plate registering.

Printing Unit (2 parts)

1.Printing Plate Roller
1)Printing roller diameter 400mm.
2)The printing roller uses the high quality thick wall seamless steel tube,the surface conditioning,the fine grinding,the plating.
3)Balance correction,smooth operation.
2.Embossing Roller
1)Thick wall seamless steel pipe,surface finish,plating hard.
2)Balance correction,smooth operation.
3)The adjustment of the adjustment of the adjustment of the structure,adjust the range of 0 ~ 12mm.
3.Ink Roller
1)Thick wall seamless steel pipe surface grinding of the surface after grinding,pressing reticulate,hard chromium plating.
2)The dot is identical,the ink is even,extend the plate and rubber roller service life.
3)Roller gap with manual adjustment structure,the range of 0 ~ 11mm.
4.Ink Evenly Rubber Roller
1)High quality seamless steel tube wrapped durable,corrosion resistant,wear resistant rubber.
2)Rubber roller gap adjustment using the hand lock structure,adjust the range of 0 ~ 3 mm.
5.Phase Adjustment Mechanism
Planetary Gear Structure.
6.Ink Circulation Structure
Pneumatic diaphragm pump for ink stability,simple operation and maintenance.

Slotting Unit

1.Position could be adjusted CW or CCW easily with 360 degree because of the equipping of planetary gearing mechanism.
2.Double slotting configuration,after pressing of prepressing wheel and pressing wheel, the carton box will reach better forming effect.
3.Precision linear guide horizontal displacement systems is equipped with slotting unit, the slotting knife seat,pressing wheel,trimming knife will moving precisely.
4.The slotting knives are made of high quality alloy steel,with heat treatment and grinding which ensure a long life.
5.Manual gap adjustment of prepressing wheel,pressing wheel,slotting knife seat.
6.Punching hole device is optional.

Die-Cutting Unit

1.Cutting roller for high-quality steel,balance correction,hard chrome plating.
2.The use of electric digital die-cutting phase adjustment 360°(operation stop can be adjusted).
3.Super-resistant polyurethane pad pouches cut smooth,easy installation,mold cheddar 800 million times.
4.Mechanical devices move around,40mm,pouches extend service life.
5.The line speed automatic compensation device,ensure die cutting precision.

Q1.Are you a manufacturer or a trading company?

A:Our shanghai office is mainly doing export.We have our own factory in Wenzhou,Zhejiang Province.

Q2.What is the machine warranty?

A:One year.After the warranty,we still provide technical support to buyer at low cost.

Q3.What is the production time while placing order?

A:Normally about 10-20 days.

Q4.What is the delivery time?

A:15-30days after deposit.

Q5.Can your company handle shipping for customers?

A:Yes,just give us destination sea port or container yard.

Q6.Does the packing strong?

A:Yes.Adopts moisture-proof and shock-proof packaging which is suitable for long-distance road transportation and various types of weather conditions.A full set of maintenance and operation manuals is included.

Q7.How about the machine installation and training?

A:1)We provide training in our factory for free; 2)We can send technicians (engineers) to your factory for installation and training.You shall pay the round trip air fare and accommodations,plus each technician charges USD100/per day.

Q8.Do you have machines in stock?

A:For standard model,we have a large quantity in stock.For special model,we need 20-30 days to produce it for you.

Q9.How can you assure the machines’ quality?

A:Each machine will be test running at least 24 hours before delivery to assure the quality.And during the warranty,we will give spare parts for free if machine has any problem.

Q10.Do you inspect machines or test running before packing?

A:Of course we do.We have QC department to debug the machine before packing.If you want to use specific material to do the test running,you need to pay for the cost of the material.

Q11.What’s the payment term?

A:T/T 30% in advance,the balance shall be paid before delivery.We also accept payment by West Union or L/C at sight.

Q12.Do you accept factory visiting?

A:Warmly welcome for your visiting.

Q13.How many years are you in printing field?

A:The Shanghai company since in 2008,the factory is more than 25years.

Q14.How many clients do you have?

A:We have sold our machines to about 60 countries.We have agents in South Africa,Morocco and Italy.

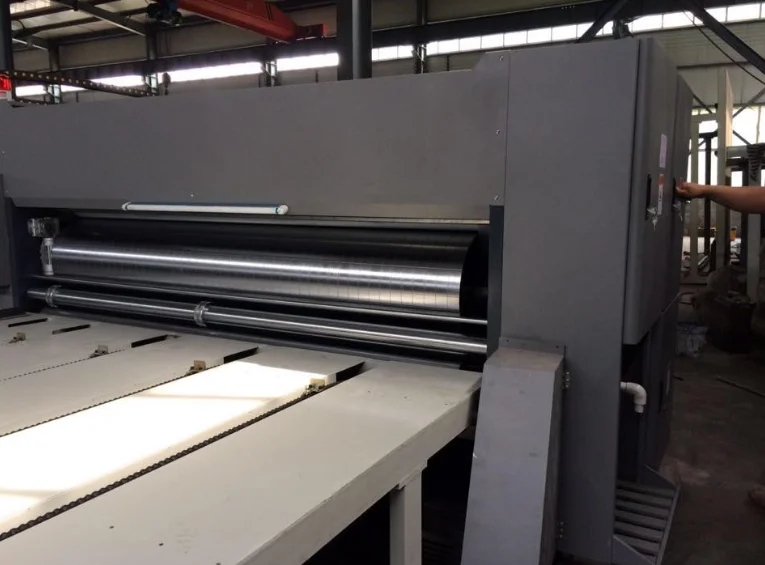

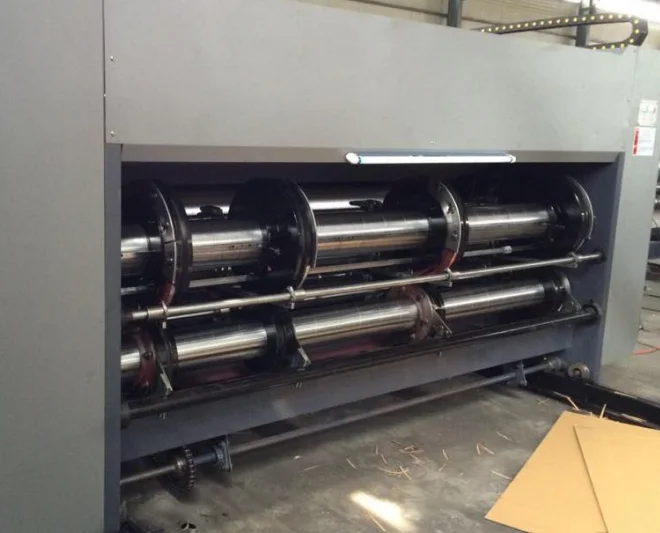

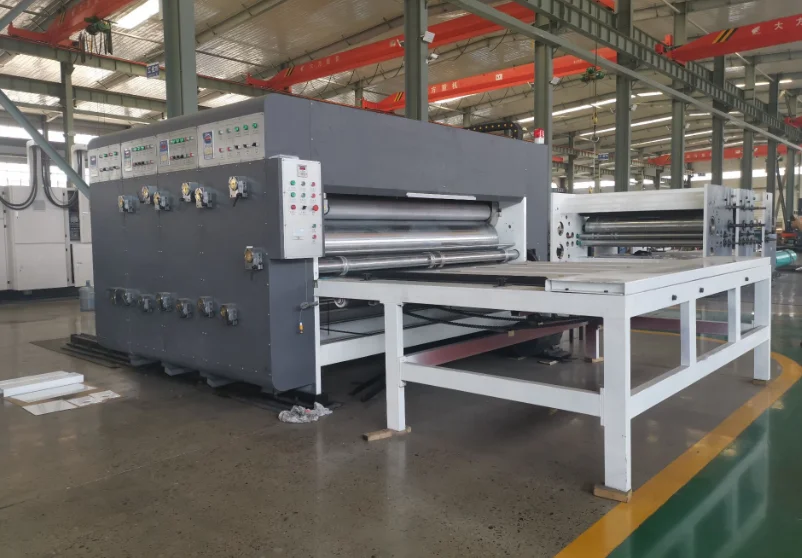

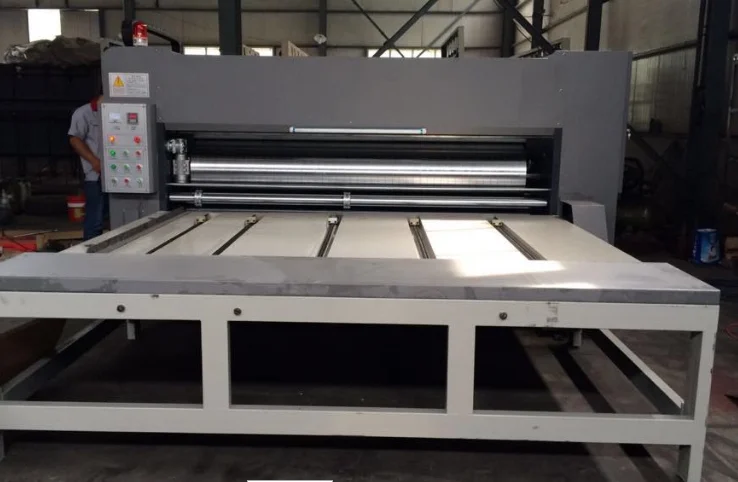

PRY-B400 Semi Automatic 2 Colors Flexo Printing Slotting Die Cutting Machine Images
